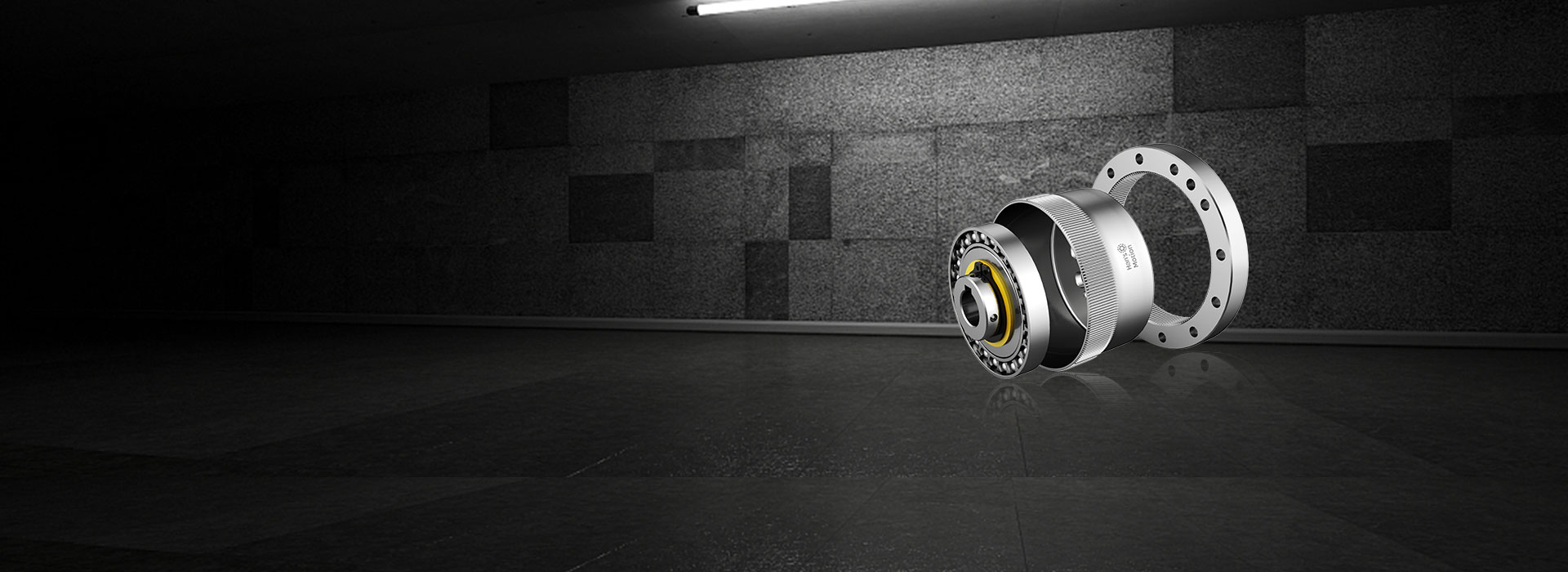

PICEA Motion Harmonic Drive Gear Boxes enhance overall system performance with their superior motion control capabilities. This leads to improved productivity and accuracy in manufacturing processes and other applications, including robot harmonic drive.
The PICEA Motion Harmonic Drive Gear Box delivers exceptional precision, with minimal harmonic drive backlash and high positional accuracy. This makes it ideal for applications requiring exact movements, such as robotics, CNC machines, and aerospace systems.
PICEA Motion’s harmonic drive gear boxes are known for their compact and lightweight design, allowing for integration into space-constrained environments. This advantage is particularly beneficial in industries like medical devices and robotics, where space and weight are critical factors, featuring products medical gearboxes.
Despite their compact size, PICEA Motion Harmonic Drive Gear Boxes can handle high torque loads. This feature ensures robust performance in demanding applications, such as industrial automation and heavy machinery.
The harmonic drive technologies used in PICEA Motion gear boxes ensures zero harmonic drive backlash, enhancing the system's performance and reliability. This is crucial for applications that require smooth and precise motion control.
PICEA Motion harmonic drive gearboxes boast high efficiency and reliability, with a long service life and minimal maintenance requirements. This results in lower operational costs and increased uptime for industrial equipment and machinery.
Unit:mm

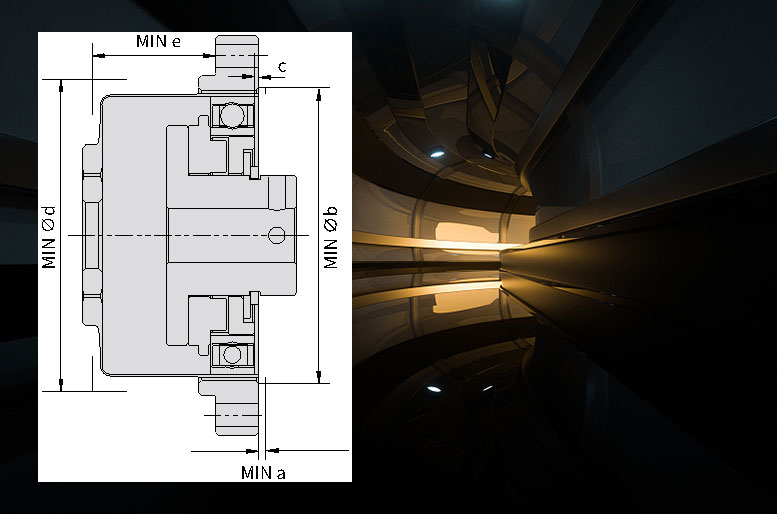

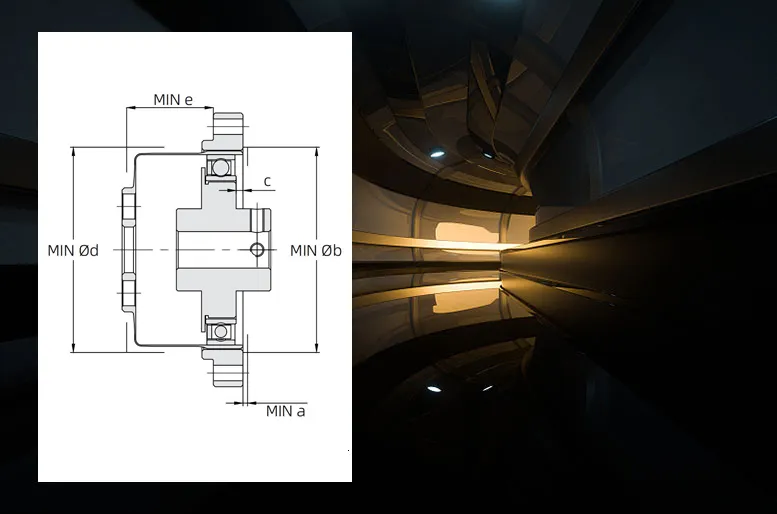

Model | a | b | C | d | e |
14 | 1 | 38 | 1.4±0.2 | 38 | 17.1 |
17 | 1 | 45 | 1.6±0.2 | 45 | 19 |
20 | 1.5 | 53 | 1.5±0.2 | 53 | 20.5 |
25 | 1.5 | 66 | 3.5±0.2 | 66 | 23 |
32 | 1.5 | 86 | 4.2±0.2 | 86 | 26.8 |
40 | 2 | 106 | 5.6±0.2 | 106 | 33 |
Unit:mm

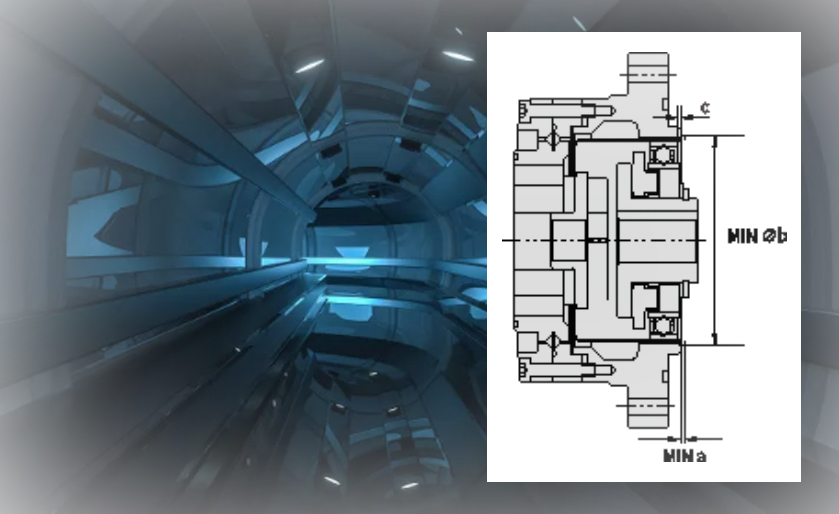

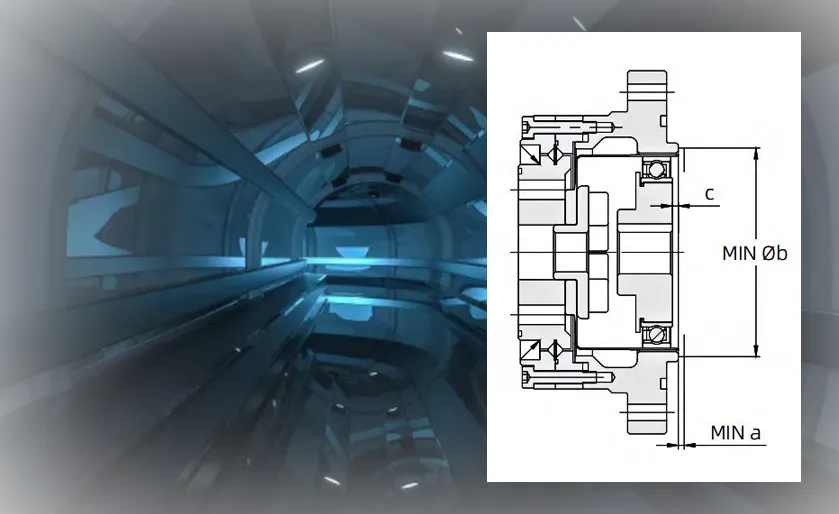

Model | a | b | C |
14 | 1 | 38 | 1.4±0.2 |
17 | 1 | 45 | 1.6±0.2 |
20 | 1.5 | 53 | 1.5±0.2 |
25 | 1.5 | 66 | 3.5±0.2 |
32 | 1.5 | 86 | 4.2±0.2 |
40 | 2 | 106 | 5.6±0.2 |
C refers to the distance between the end face of the outer ring of the flexible bearing and the end face of the circular spline,
Please confirm the design size of the flange and wave generator in strict accordance with the clearance dimension of the harmonic drive gear box. If the size exceeds the clearance dimension, it will cause interference of the flex spline and flange or wave generator and affect the service life of the harmonic drive.
The installation of the harmonic gear reduction drive shall be designed according to the installation depth requirement of the wave generator. The different installation depths of the harmonic gear drive reducer will affect the parameters, such as the starting torque and precision of the reducer.
Harmonic drive gear boxes, provided by PICEA Motion, offer excellent efficiency and numerous advantages. The unique harmonic drive mechanism ensures efficient power transmission with minimal energy loss. These strain wave gearbox and harmonic reduction gear are compact, lightweight, and provide high torque-to-weight ratios, making them ideal for applications where space and weight are critical factors. They also offer exceptional precision, harmonic drive backlash-free operation, and smooth motion control, resulting in improved positioning accuracy and reduced vibration. PICEA Motion, one of the leading harmonic drive distributors, offers reliable products and comprehensive solutions tailored to specific harmonic drive applications requirements. Their harmonic drive gear boxes provide efficiency and advantages for a wide range of industries and applications
