Industrial robot servo motors operate at high speeds (typically above 3000 rpm), but robot joints require:
Low-speed, high-torque output
High positioning accuracy
Zero or extremely low backlash
High repeatability
Long lifespan and stable operation
Harmonic drive reducers perfectly meet these requirements and are therefore widely used in the core joints of industrial robots and rotary actuators. The Core Value of PICEA MOTION Harmonic Reducers for Industrial Robots:
High Positioning Accuracy
Standard Planetary Gear Reducer:
Backlash: 5~15 arcmin
Harmonic Reducer: Backlash < 1 arcmin, near-zero backlash achievable
Suitable for: Welding Robots, Painting Robots, Assembly Robots
High reduction ratios,achievable in a single stage: 30:1,50:1,80:1,100:1,120:1, 160:1
Lightweight Design
Advantages: Reduced robot inertia, increased movement speed, reduced servo motor power requirements
Hollow structure design: Enables cable wiring, air pipe wiring, fiber optic wiring
Especially suitable for: Collaborative robots, welding robots, laser processing robots
Among the precision harmonic drive robot arm reducers, compared with the RV reducer, the harmonic gear drive reducer has a simpler structure, smaller mass and volume, higher single-stage transmission ratio and higher precision, and harmonic drives in robotics has an irreplaceable position in the field of robotics. RV reducer: It has a large transmission ratio range, relatively stable precision, high fatigue strength, and higher rigidity and torque bearing capacity. It has advantages in heavy-load parts such as robot arms and machine bases. Due to the characteristics of large external dimensions, it cannot be developed into the light and flexible light load field.
Harmonic drive robot reducer: The harmonic robot speed reducer has the advantages of large single-stage transmission ratio, small volume, small mass, high motion precision, and can work normally in confined space and medium radiation conditions. Compared with the general reducer, when the output torque is the same, the volume of the harmonic drive oldham coupling reducer can be reduced by 2/3 and the weight can be reduced by 1/2, which makes it light and flexible in the robot forearm, wrist, hand, etc. Taller components have irreplaceable advantages.
The application field of robot harmonic drive reducer is currently dominated by various robots, in addition to CNC machine tools, semiconductor, photovoltaic, medical and other equipment fields.
Harmonic Drive: Known for high precision, robot harmonic drives use a flexible spline that is deformed by an elliptical wave generator, resulting in highly accurate rotational motion.
Planetary Gear: Common in various applications, planetary gears consist of a central sun gear, multiple planet gears, and an outer ring gear, providing high torque and compact size.
Harmonic Drive: Utilizes three main components: a circular spline, a flexible spline, and a wave generator. The wave generator deforms the flexible spline to engage with the circular spline, creating smooth, precise motion.
Planetary Gear: Features a sun gear at the center, robot planetary gearboxes around the sun gear, and a ring gear that encompasses the planet gears. The planet gears rotate around the sun gear while meshing with the ring gear.
Harmonic Drive: Harmonic drives in robotics offer high precision with minimal backlash, making it ideal for applications requiring exact positioning, such as robotics and aerospace.
Planetary Gear: Known for high torque transmission and efficiency, planetary gears are widely used in automotive, industrial machinery, and renewable energy applications.

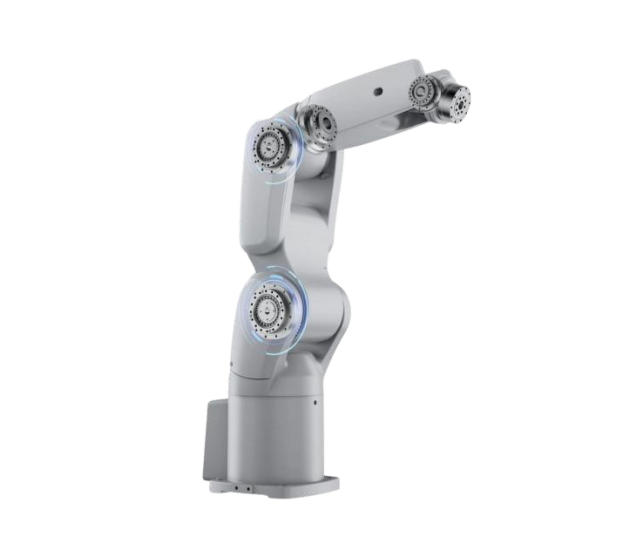

Robot harmonic drive has extensive applications in harmonic robot arm gearboxes, particularly in the field of robotic arms. Harmonic drive robot arms utilize these drives for their compact size, high precision, and efficient power transmission. By incorporating harmonic robotic gearbox drives into robot arm gearboxes, precise and smooth motion control can be achieved, allowing for accurate positioning and manipulation of objects. Harmonic drives in robotics offer advantages over traditional planetary gear robot arm systems, such as reduced backlash and improved torque-to-weight ratio, making them ideal for high-performance robot arm applications. Their compact design and superior performance make harmonic drive robot arms well-suited for various industries, including manufacturing, automation, and research.
A robot planetary gearbox, such as the VersaPlanetary gearbox, plays a vital role in robot arm applications. Designed specifically for robotics, a planetary gear system offers advantages such as compactness, high torque capacity, and precise motion control. The planetary robot arm gearbox efficiently transmits power from the motor to the robot arm, allowing for accurate positioning and smooth operation. With its versatile design and customizable options, the VersaPlanetary robotic gearbox provides flexibility in robot arm applications, accommodating different torque requirements and gear ratios. Its reliability and performance make the harmonic robot planetary gearbox a popular choice in various industries, including manufacturing, automation, and robotics research.
